| Characteristics |
Description |
| Model NO. |

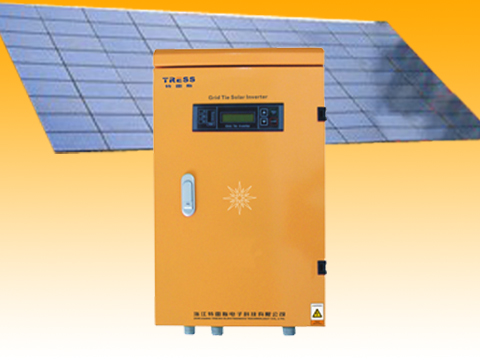

SDPG-T6KA |
| Solar Panel |
6KW |
| Switch Case |
6KW |
| System Max Output Power/day |
3.3kwh/day |
| Inverter DC Input |
MPPT Voltage Range |
DC100 ～ 450V |
| Rated DC Voltage |
360V |
| Control System |
MPPT |
| System AC Output |
Output Power |
6000W |
| Rate voltage |
AC220V/50Hz or AC110V/60Hz |
| Normal Grid Frequency |
50/60Hz（Grid frequency） |
| Power Factor |
＞ 0.95 |
| Current THD |
At rated power and in the sine wave < 5% |
| Control System |
PWM |
| Anti-islanding |
≤0.5 sec |
| Total Max. Current |
27.3A |
| Max. Efficiency |
97% |
| Euro Efficiency |
96.40% |
| Inverter Structure |
Protection Class |
IP65 |
| Noise |
＜ 50dB |
| Data Interfaces |
External RS232C/RS485 |
| Display |
LCD |
| Packing Dimensions (W*H*D) |
680*415*325mm |
| Net weight |
35kgs |
| Protection |
Inverter |
Input over voltage, output short circuit, overheat, output DC component. |
| Grid |
Anti-islanding, over/under voltage of grid, over/under frequency of grid. |
| Environment |
Environment |
No corrosion gas, flammable gas, oil mist, dust etc. |
| Operation temperature |
-10 ℃ ~40 ℃ （ 50 ℃ ） |
